ZM-320 Semi rotary / rotary Label die cutting machine with uv varnishing printing / cold foiling / slitting

FOB Reference Price:Get Latest Price
$50,000.00 - $110,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
ZM320
Power(W):
15KW
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Certification:
CE ISO9001
Type:
label die-cutting machne
Applicable Industries:
Label
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Zhejiang, China
Brand Name:
WEIGANG
Voltage:
380V
Dimension(L*W*H):
3220X1680X1660mm
Weight:
2600KGS
Key Selling Points:
Automatic
options 1:
Flexo UV vanishing
options 2:
Cold foiling unit
options 3:
Two die cutting stations
options 4:
slitting with two rewinder
options 5:
sheeting device
Warranty:
1YEAR
Supply Ability
Supply Ability:
15.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
export wooden case
Port
Ningbo,Shanghai
Video Description

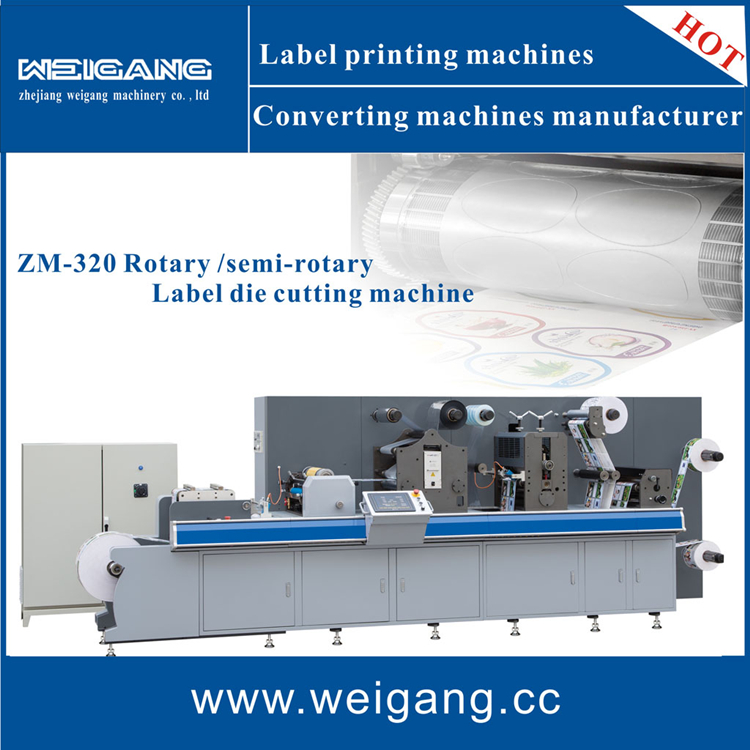

ZM-320 die-cutting machine is new developed converting machine. This machine adopts latest Rexroth-Bosch (Germany) servo and control system. Include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder. Customers could add many options on this machine as flexo UV varnishing, cold foiling, two die-cutting stations, sheeter conveyer, slitting with two rewinder etc.



The register die-cutting system is our patent product; it can be full rotary or semi-rotary die-cutter

according to the production requirement. When semi-rotary die-cutter, the tension among unwinder,

Web-guider and rewinder will be the same (different from traditional intermittent type), the material

will not run away during the die-cut. Semi-rotary die-cutting unit adopts one big magnetic cylinder,

if you have different applications, the only job is to change the flexible die.



It has the characteristic of fast speed, super accurate, easy operation, high efficiency

and less cost. It’s good for all kind of label die-cutting jobs, include short run to long run.

If the job is large quantity, then you can change the magnetic roller accordingly, it will highly

increase the die-cutting quality and output.

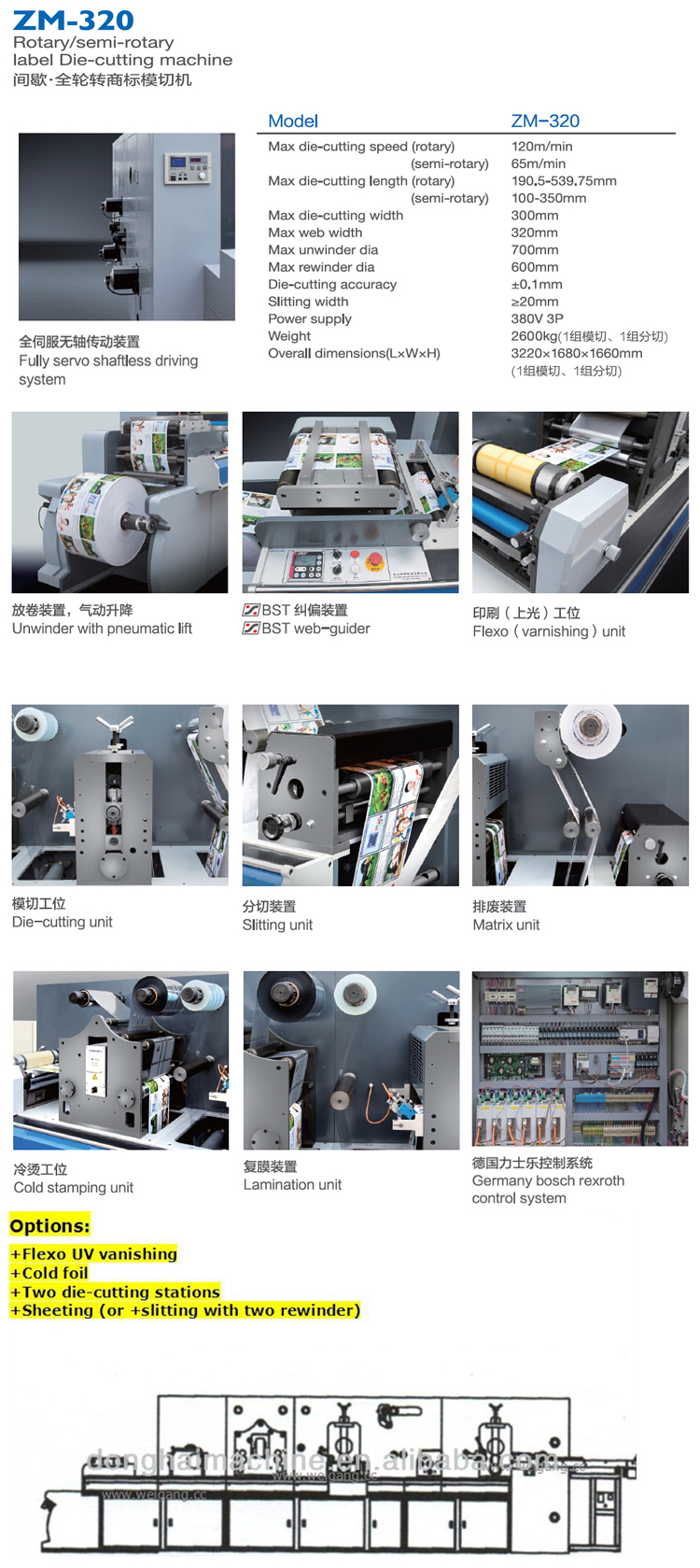

 Technical Parameters:

Max die-cutting speed (rotary)

120m/min

Max die-cutting speed (semi-rotary)

65m/min

Max die-cutting length (rotary)

190.5-539.75mm

Max die-cutting length (semi-rotary)

100-350mm

Max die-cutting width

300mm

Max web width

320mm

Max unwinder dia

700mm

Max rewinder dia

600mm

Die-cutting accuracy:

±0.1mm

Slitting width

≥20mm

Power supply

4100w

Main machine dimension:

380V 3P

Over dimension:

3220X1680X1660mm

Machine weight:

About2600kg











1. Q: Are you factory or trading company?
    A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing

        Machinery Co.,Ltd.).



2. Q:How does your factory do regarding quality control?

    A:Quality is priority. We always attach great importance to quality controlling

       from the beginning.


3.
Q: why choose Weigang Machinery?

    A: We are one of leader in this field(in China). Our quality products and service have enabled            us to expand our market from china to more than 60 countries.

Welcome to visit us and contact us freely.
