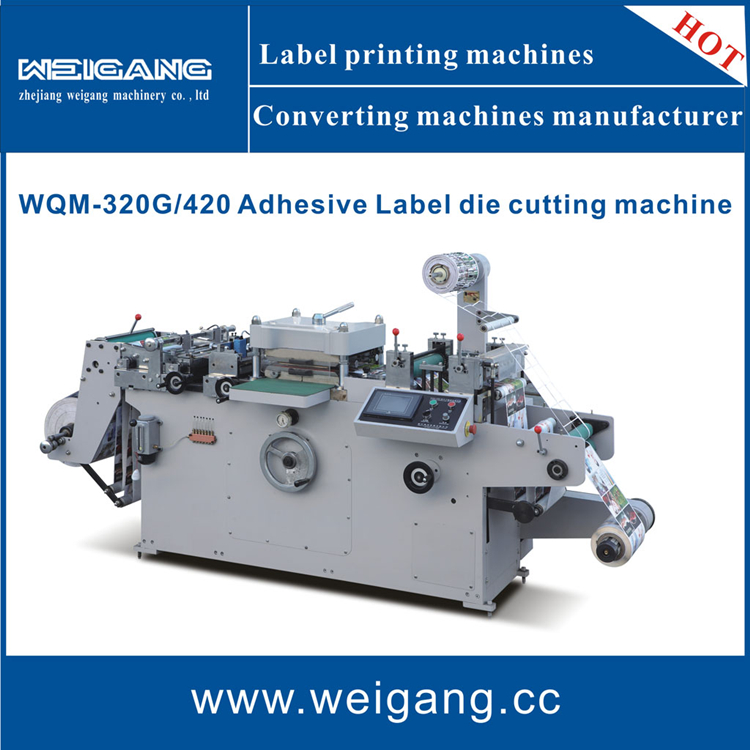

WQM-420 Roll to roll label die cutting machine

FOB Reference Price:Get Latest Price
$16,000.00 - $20,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
WQM-420
Power(W):
4.5KW
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Certification:
CE, ISO, TUV
Type:
label converting and finishing machine
Applicable Industries:
Label
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
China
Brand Name:
WEIGANG
Voltage:
220V
Dimension(L*W*H):
2950X1350X1400mm
Weight:
2300KGS
Key Selling Points:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Option1:
Lamination system
Option2:
Hot-stamping system
Option3:
Punching system
Warranty:
1 year
Supply Ability
Supply Ability:
60.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by standard wooden case
Port
Shanghai,Ningbo
Video Description



1. High precision

The machine employ high precision flatten die-cutting system. The material feeding system is controlled by a computer system, and the machine is equipped with triple photoelectric eyes for the label positioning.

2. Simple operation

This machine can finish die cutting, waste rewinding and finished-material rewinding are finished in one process.

3. Wide range of applications

Our label die cutting machine is especially suitable for die cutting of adhesive labels, Dacron labels and hologram labels, and more.



This is the ideal association equipment for the flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and it’s the most efficient machine for printing house.

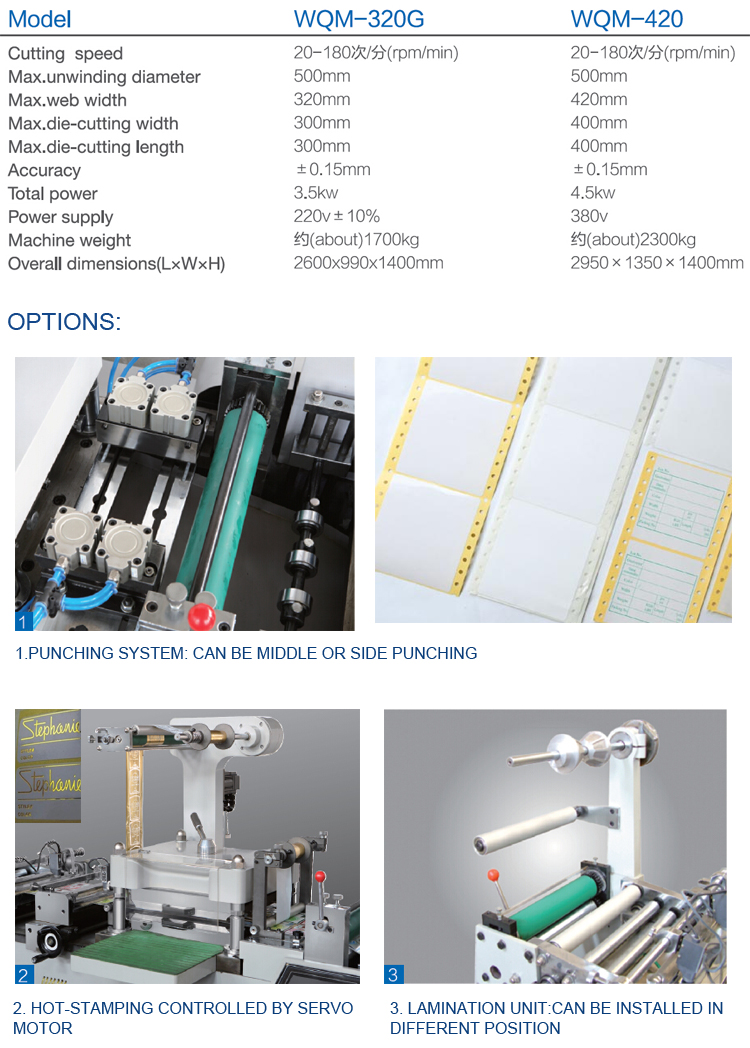

4. Main TECHNICAL SPECIFICATION:



Model

WQM-320G WQM-420

Cutting speed

20-220rpm/min

20-210rpm/min

Max.unwinding diameter

500mm

500mm

Max. web width

320mm

420mm

Max .die-cutting width

300mm

400mm

Max. die-cutting length

300mm

400mm

Accuracy

±0.15mm

±0.15mm

Total power

3.5KW

4.5KW

Power supply

220V±10%

380V

Machine weight

About 1700kg

About 2300kg

Overall dimensions

2600X990X1400mm

2950X1350X1400mm





5. Why die cutting machine from WEIGANG factory sales more than other suppliers:

A, every month we make at least 40-50sets die cutting machine.

B, we have our own CNC workshop to make the machine body,which ensures the accuracy and quality is much stronger

C, we use Yaskawa (Japan brand) AC Servo motor and servo pack.

D,we use mitsubishi PC and Schneider inverter.

E, we use WEINVIEW (Taiwan brand) Touch screen and Omron relay.

F, we use P+F register Sensor and Kontec web-guider sensor.

G, our die-cutting pressure is around 8-9tons, which ensure the steady die-cutting.

H, the gearings and ball bearings inside the die-cutting head all with special treatment which ensures the mechanical parts can use for long life.

1. Q: Are you factory or trading company?
    A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing

        Machinery Co.,Ltd.).



2. Q:How does your factory do regarding quality control?

    A:Quality is priority. We always attach great importance to quality controlling

       from the beginning.


3.
Q: why choose Weigang Machinery?

    A: We are one of leader in this field(in China). Our quality products and service have enabled            us to expand our market from china to more than 60 countries.
