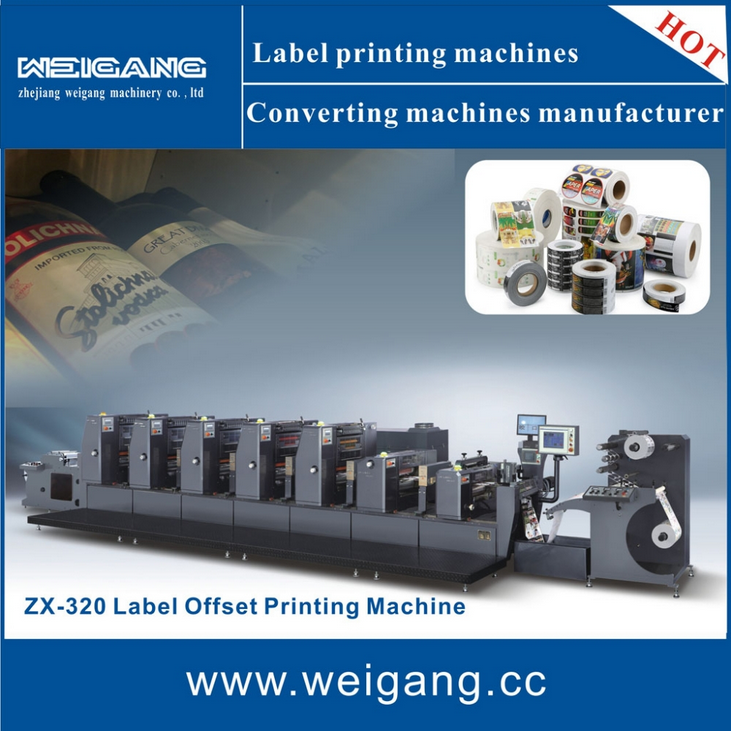

ZX-320 multicolor label offset printing machine with uv drying /curing system for sale

FOB Reference Price:Get Latest Price
US $360,000-500,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Offset Printer
Condition:
New
Plate Type:
offset printer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WEIGANG
Model Number:
ZX-320
Usage:
Label Printer, Paper Printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V
Gross Power:
63KWS
Dimensions(L*W*H):
8850 X 1600 X 1850MM
Weight:
9500KGS
Certification:
ISO ,CE, TUV
color:
5
Max printing area:
300 x 350 mm
Printing plate size:
320 x 400 mm
Blanket size:
500 x 325 x195 mm
Printing speed:
63m/min
Option:
1. Uv varnishing 2. Rotary die-cutting station
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by wooden case
Port
NINGBO
Lead Time :
About 3-5months



Benefits:

Designed for short run to long run (each job cost less than USD5)

–Superior and consistent printing quality

–Low material waste

–The quickest job change and fastest job set up

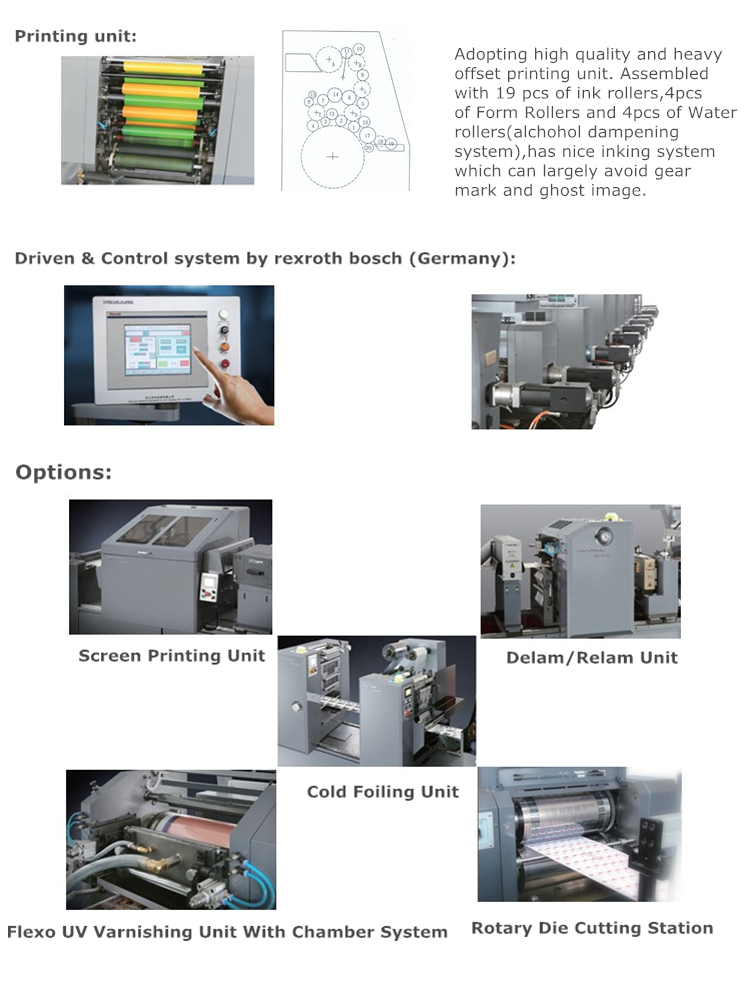

Features:

Fully servo system from Rexroth (Bosch)

–Pre-register system

–Inline plate cocking(skewing)adjustment

–Heavy offset printing system

–19pcs ink roller and 4pcs form roller

–Independent lubrication system for each unit

–UV dryer : 7 sections control independently

–Multi option: Flexo uv varnishing(solid and spot) , rotary die cutting , Cold foiling, Delam/Relam Unit, Hot stamping unit,screen printing unit , ink remoting control ,corona treater , inline trim slitting etc.



Main Technical Specifications:

Printing speed

50-180 rpm/Min

Printing color

5colors

Max.printing length

350mm

Max.web width

320mm

Max.printing width

300mm

Max. unwinding diameter

700mm

Max. rewinding diameter

600mm

Power supply

3 phase 380v

Total power

33.6kw (without uv power )

Main machine size

8850mm x 1600mm x 1850mm (L x W x H)

Main Machine weight

About 9.5t




.jpg





.jpg

.jpg




1. Q: How about the after service?

    A: We have a strong team, special for after service.We can arrange engineers to do service for you.



2. Q: Are you factory or trading company?
    A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing

        Machinery Co.,Ltd.).

3. Q: Where is your factory located? How can I visit there?


    A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the

       Wenzhou airport. You can fly to Wenzhou airport directly.



4. Q:How does your factory do regarding quality control?

    A:Quality is priority. We always attach great importance to quality controlling

       from the beginning.



5. Q: why choose Weigang Machinery?

    A: We are one of leader in this field(in China). Our quality products and service have enabled us

        to expand our market from china to more than 60 countries.



Welcome to visit us and contact us for any problems
