Automatic two colors roll to roll silk screen printing machine made in china for sale

FOB Reference Price:Get Latest Price
US $0-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Certification:
CE
Gross Power:
1200W
Usage:
Card Printer, Label Printer, Paper Printer, opp,pvc security label
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WeiGang
Model Number:
WQ-320 Screen Printing Machine
Automatic Grade:
Automatic
Voltage:
220Vd10%
Dimensions(L*W*H):
2.4(L) X0.95 (W) X1.5 (H) M
Weight:
1100KG
options 1:
UV dryer (baoding brand)
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by exported wooden case
Port
SHANGHAI
Lead Time :
10-40days

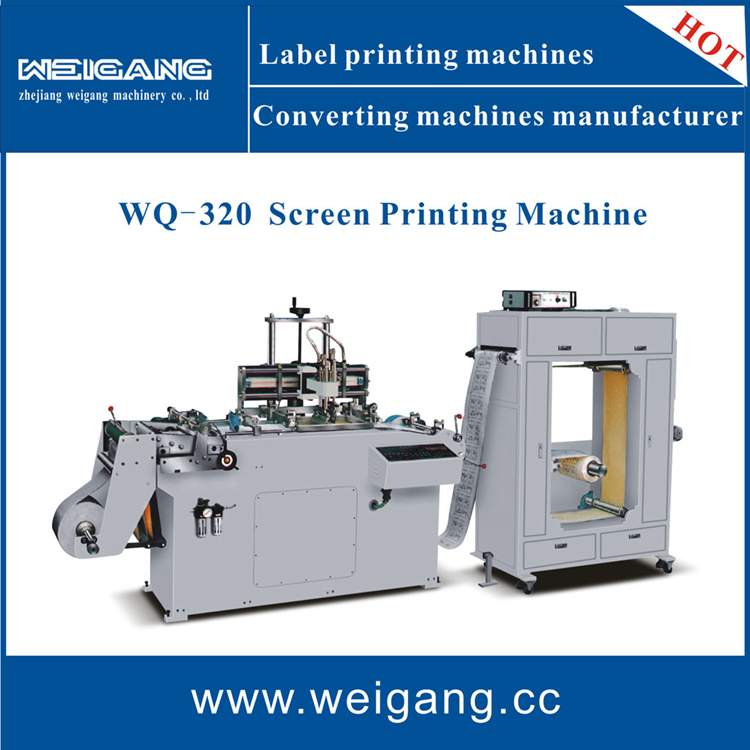

WQ-320 Silk screen printing machine
WQ-320 series CNC silk screen printing machine is applicable for printing on variety of material, like PVC, OPP, ant counterfeit trademarks and adhesive labels, and more. It can finish printing, drying and rewinding at one stroke.



Weigang Machinery Company is a professional silk screen printing machine manufacturer and supplier based in China .We have been ISO 9001:2008 certified ,In addition to silk screen presses , we can also provide flexo printing machines, offset printing equipment and die-cutting machinery, and more. All our products are CE certified and are sought after by customers from the United Stated, Spain, Portugal, Russia, South Korea, among over 50 countries.







Characteristics:



Yaskawa CNC controlled servo motor purchased from Japan is employed for roll material feeding .The main transmission part of our silk screen printing press is pneumatically controlled. Meanwhile, a SILK brand photoelectric tracking device imported from German is also equipped to guarantee high precision printing.



Hence, our screen printers are characterized by high precision color registration, steady material feeding, and simple adjustment .Functions like auto metering and counting are also available.







Main Equipment:



Description

Quantity and Brand

Servo motor

1piece                          Yaskawa( Japan)

Driver

1piece                          Yaskawa (Japan)

Inverter

1piece                          Schneider (France)

Web-guiding photocell switch:

2pcs                             KONTEC KS-C2G( Taiwan)

Tracking photocell switch:

1 piece                         SICK NT6(Germany)

Air cylinder

1piece                          SMC( Japan)

Main motor:

1 piece                         Wannan Motor(China)

All Button:

1piece                          Schneider (France)










Main Technical Parameters:



Printing speed:

10-50 times/min

Max unwinding diameter:

450mm

max web width:

320mm

Max printing width:

300mm

Max printing length:

320mm

Localization accuracy:

±0.15mm

Main motor power:

1200w

Oven power:

4100w

Main machine dimension:

2.4(L)x0.95(W)x1.5(H)(m)

Over dimension:

1.75(L)x0.6(W)x1.8(H)(m)

Machine weight:

about1100kg
