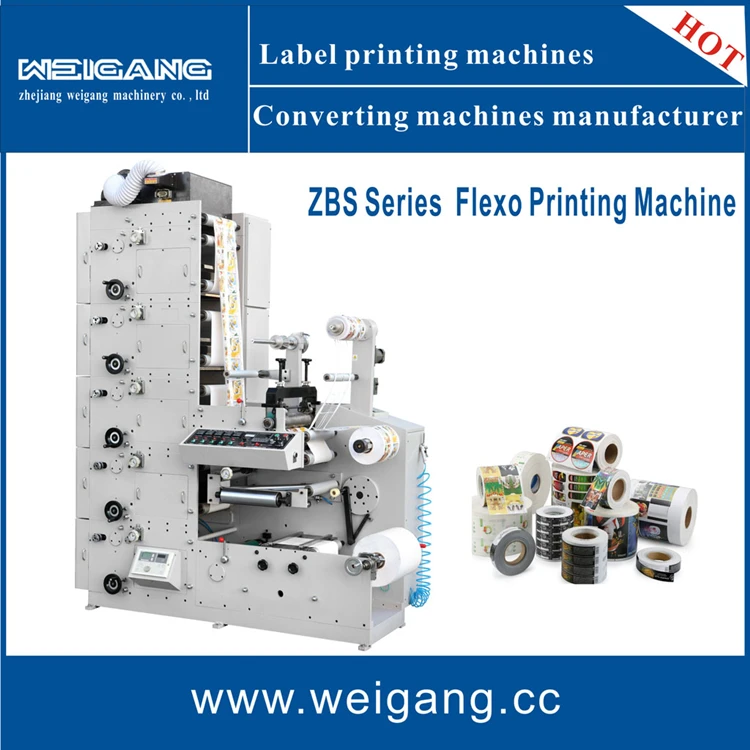

ZBS-320 The leading manufacturer of automatic label flexo printing machine with lamination station

FOB Reference Price:Get Latest Price
US $15,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 201 - 300 People
  • Factory Size: 10,000-30,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 4
  • Trademark: 1
Trade Capacity >
  • Export Percentage: 71% - 80%
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WEIGANG
Model Number:
ZBS-320
Usage:
Bill Printer, Card Printer, Label Printer, Paper Printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V
Gross Power:
22KWS
Dimensions(L*W*H):
2.10m X 1.20m X 2.60m
Weight:
2200kgs
Certification:
CE, TUV, ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaged with Standard Export Wooden Case
Port
NINGBO,SHANGHAI
Lead Time :
About 30-40days

A. CHARACTERISTIC

1, Ceramic anilox cylinder are adopted for ink transferring.

2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.

3, Each printing unit is adopted 360°printing plate-adjustment.

4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)

5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.

6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.

7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.

8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.



B. STANDARD EQUIPMENT:

3 x full sets of chrome plated precision  printing cylinders

1 x printing plate mounter.

1 x Toolbox.

Printing Repeat Length:

Standard : Z56 - Z112

Option 1 : Z65 - Z145

Option 2 : Z75 - Z170



C. MATERIAL SUBSTRATE:

10 Micron Film To 400 Micron Board

Unsupported Film

Aluminium Foil

Tissue paper

Self adhesive paper

Vinyls/PVC

Carton weight board



D. MAIN TECHNICAL SPECIFICATION

Model

ZBS-320

Printing speed

60m/min

Printing color

5colours

Max. web width

320mm

Max .printing width

310mm

Max. Unwinder/Rewinder diameter

600mm

Printing length

177.8-355.6mm

Thickness of flexo plate

1.7mm or 1.14mm

Precision of chromatography

±0.1mm

Dimensions

2.1mX1.1m X2.6 m

Machine weight

About 2150kgs



E. OPTION:

• Free standing unwind with roll lifter, roll diameter max 900mm.

• Corona Treater.

• UV Dryer

• Turn Bar

• Additional printing units.

• Cold foiling.

• Video web inspection


FAQ

1, Q: How about the after service?

    A: We have a strong team, special for after service. We can arrange engineers to   do service for you.



2, Q: Are you factory or trading company?

    A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing Machinery Co.,Ltd.).


3, Q: Where is your factory located? How can I visit there?

    A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly.



4, Q:How does your factory do regarding quality control?

 A:Quality is priority. We always attach great importance to quality controlling from the beginning.



5, Q: why choose Weigang Machinery?

    A: We are one of leader in this field(in China). Our quality products and service have enabled us to expand our market from china to more than 60 countries.



Welcome to visit us and contact us for any problems!
